Simple simulation example#
[1]:
from openalea.spice.simulator import Simulator
from openalea.spice import Vec3
Setup configuration#
[2]:
simulator = Simulator(config_file="simulation.ini")
simulator.addVirtualDiskSensorsFromFile("./sensors/sensors_expe1.csv")
simulator.addFaceSensorsFromLpyFile(
"./assets/rose-simple4.lpy", Vec3(1280.0, 860.0, 980.0)
)
simulator.setup()
Transparent material: Makrolon
Run the simulation#
[3]:
simulator.run()
Wavelength: 600 - 655
Backface Culling OFF
Build photonmap...
nb photons per lights: 125000
Done!
calculating sensor energy...
Tracing photons from light n° 1/8...
Tracing photons from light n° 2/8...
Tracing photons from light n° 3/8...
Tracing photons from light n° 4/8...
Tracing photons from light n° 5/8...
Tracing photons from light n° 6/8...
Tracing photons from light n° 7/8...
Tracing photons from light n° 8/8...
Max depth possible: 29
calculating sensor energy...
Time taken: 1.9942762851715088
Calibrate the result#
[4]:
calibrated_res = simulator.calibrateResults("spectrum/chambre1_spectrum", "points_calibration.csv")
Write the result#
[5]:
simulator.results.writeResults()
Done write sensor energy!
Done write sensor energy!
Visualize scene with OAWidgets#
[6]:
simulator.visualizeScene("oawidgets")
[6]:
[7]:
simulator.visualizePhotons("oawidgets")
[7]:
[8]:
simulator.visualizeResults("oawidgets")
[8]:
[9]:

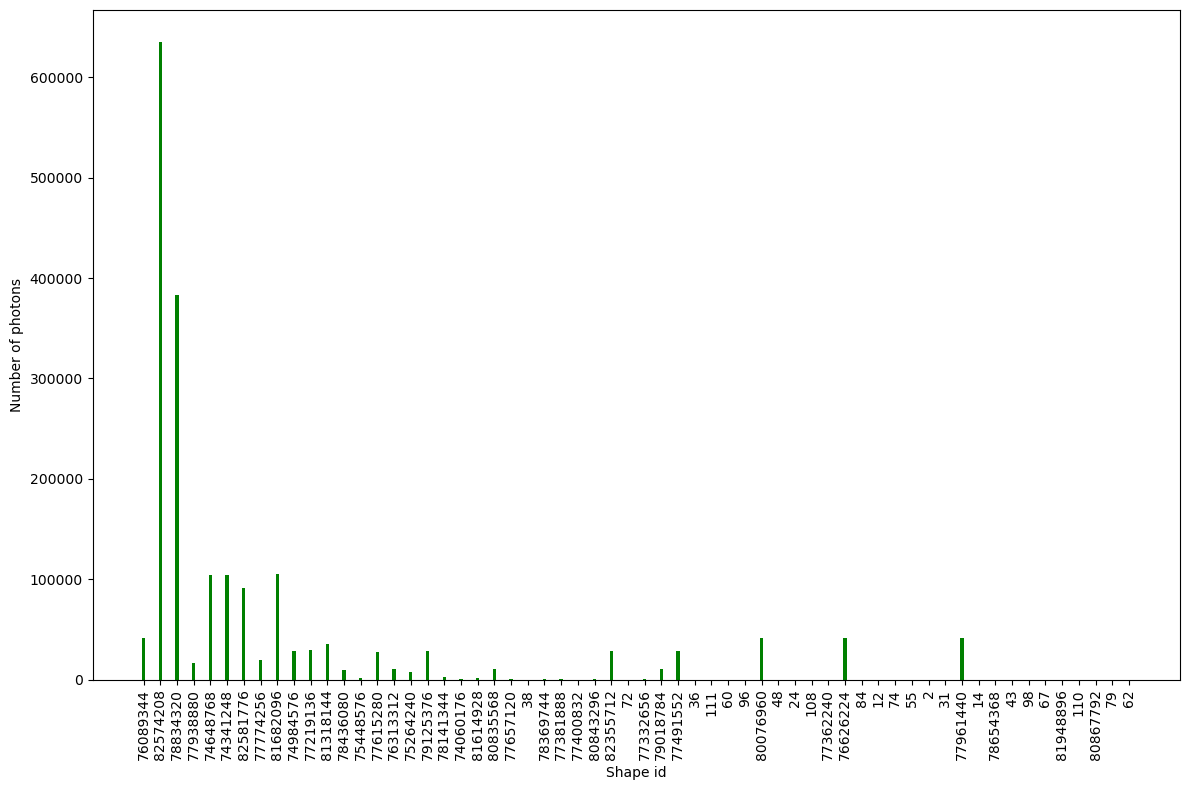

simulator.results.display_face_sensor()
[10]:

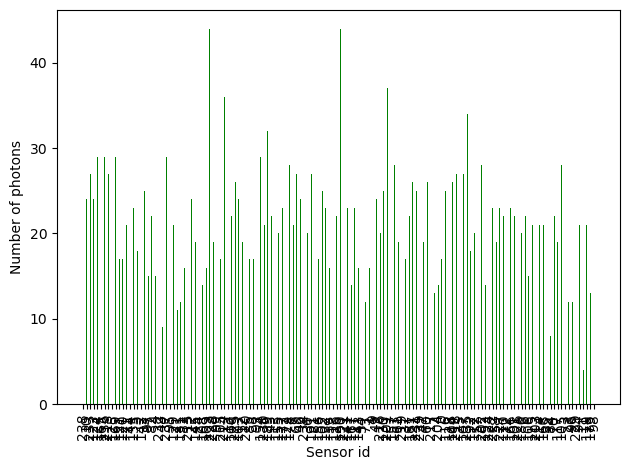

simulator.results.display_virtual_sensor()
